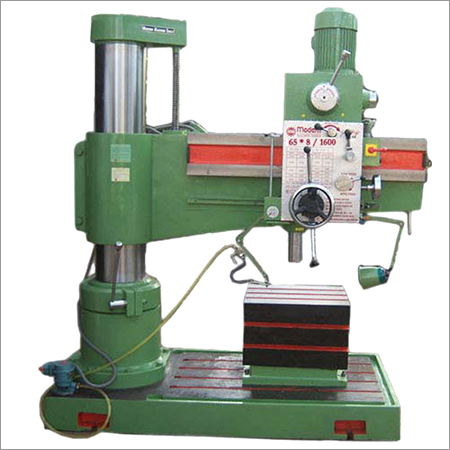

75mm all geared radial drilling machine

75mm all geared radial drilling machine
75mm all geared radial drilling machine
Product Code : MAAN 75x16/1800
Brand Name : MAAN
Product Description

With the support of our experts and sophisticated in-house facilities, we manufacture & supply 75mm all geared radial drilling machine. The offered drilling machine is assembled by utilizing finest quality components under the guidance of our experts at our well equipped production unit. Our 75mm all geared radial drilling machine is well known for features such as durable, low power consumption, easy to operate, best mother machines, best quality ground finish parts and so on.

Features

  • Panel Board for Centralized electrical Controls and Limit Switches
  • Robust structure
  • Longer functional life
  • Reliable to install

Technical Data

Specification :

Capacity :

Capacity

75mm

Driling Capacity in Solid :

In Steel having 600Mpa Tensile Strength

75mm

In Cast Iron having 180BHN

85mm

Tapping Capacity :

Metric Threads up to size [MM]

48 X 3

Any Other Threads [Inch]

1 3/4 Fine Pitch

Boring in Steel :

Boring in Steel

160mm

Drilling in Head :

Taper in Spindle -[Nose]

MT-6

Spindle travels – [Auto/Manual]

325mm

No. of Spindle Speeds/Range

16/40 – 2000 RPM

No. of Auto Feeds

4/0.10 – 0.25

Working Range :

Max Drilling Radius

500/1800

Max Distance between Base Plate to Spindle [Spindle Retracted]

500/1400

Max Drilling Head Traverse

1350MM

Rotation of Arm [Both Side]

0-180 Deg.

Electrical:

Power Supply

415V, 3 PHASE, 50Hz

Drilling Head Two Speed Motor

7.5HP

Arm Elevating Motor

3HP

Base Plate:

Working surface: L x W

1680 x 1060

No. of T – Slots & Nominal size

4/22

Weight with Electrical & Standard Accessories-APPROX (Net/Cross)

5000/5500Kg

Wooden Box Packing Dimension: L x W x H

Wooden Box Packing Dimension

600 x 500 x 500

Box Table Size: L x H x W:

Box Table Size

600 x 500 x 500

Colors:

Colors

Maan Green – Special
