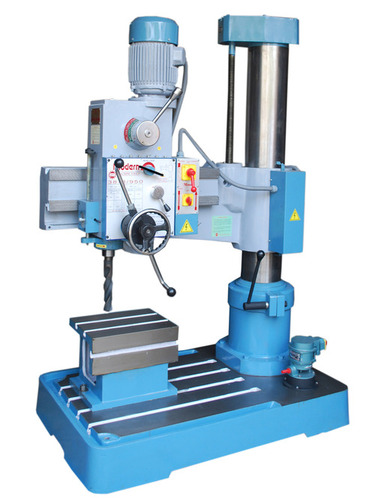

40mm All Geared Double Column Radial Drill Machine

40mm All Geared Double Column Radial Drill Machine
40mm All Geared Double Column Radial Drill Machine
Product Code : MAAN 40x8/950DC
Brand Name : MAAN
Product Description

Amidst our wide range of industrial machines, we manufacture & supply 40mm All Geared Double Column Radial Drill Machine. In order to ensure their quality, the provided machine is stringently tested on various defined parameters by our quality controllers. These machines are considered as the ideal hole making equipments that are widely used for small batch and single production process. Equipped with drilling heads, the offered 40mm All Geared Double Column Radial Drill Machine performs the drilling works easily and at a faster pace.

Features

  • Ensures better drilling
  • Long service life
  • Least maintenance
  • Easy installation

MODEL NO: MAAN 40 X 8 / 950DC

A. CAPACITY : 40MM

B. DRILLING CAP

1.  IN CAST IRON HAVING 180BHN  : 50MM

2.  IN MILD STEEL HAVING 200Mpa TENSILE STRENGTH : 45MM

3.  IN STEEL HAVING 600Mpa TENSILE STRENGTH : 40MM

C.  TAPPING CAPACITY  : 42MM

D. DRILL ING HEAD

1. TAPER IN SPINDLE [MORSE TAPPER]: MT - 4

2. SPINDLE TRAVELS – AUTO/MANUAL : 200MM

5. NO. OF SPINDLE SPEEDS / RANGE  :  8/50 - 1750 RPM

6. NO. OF AUTO FEEDS  : 2/0.6 - 0.15

E. ELECTRICAL

1. POWER SUPPLY  :  415V, 3PH, 50Hz

2. DRILLING HEAD MOTOR   : 3HP

3. ARM ELEVATING MOTOR : 0.5HP

F.  WORKING RANGE

1. DRILLING RADIUS [MAX.] :  1000 MM

2. DISTANCE BETWEEN BASE PLATES TO SPINDLE MIN/MAX. [SPINDLE RETRACTED]   :  240/1000

3. DRILLING HEAD TRAVERSE MAX [MANUAL]  :  500MM

4. VERTICAL TRAVERSE OF ARM [AUTO] :  750MM

5. ROTATION OF ARM [BOTH SIDE] :  0-180 DEG.

G. BASE PLATE

1. WORKING SURFACE [L x W] : 800 x 660

3. NO. OF T - SLOTS & NOMINAL SIZE  : 4/16

4. WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] NET / CROSS :  1400/1800KG

H. BOX TABLE SIZE [L x W x H] MM  : 400 x 300 x 300

I.  WOODEN PACKING DIMENSION [L x W x H] :  1400 x 1000 X 2000

NOTE: ALL THE ABOVE DESIGNS, DIMENSIONS AND DETAILS ARE APPRXIMATE ONLY AND WE RESERVE THE RIGHT TO ALTER THEM WITHOUT PRIOR NOTICE AS WE ARE IMPROVING THE DESIGN.
