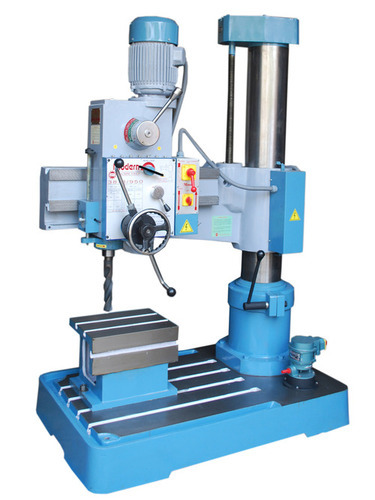

40 MM Fine Feed Radial Drilling Machine

40 MM Fine Feed Radial Drilling Machine
40 MM Fine Feed Radial Drilling Machine
Product Code : 40 mm radial drill
Product Description

Technical Details:

Drilling Capacity   - 38mm to 40mm

DRILL HEAD

  • Spindle Nose - MT-4
  • Spindle Travel - 220
  • No of Spindle - 8
  • Range of Spindle Speed(RPM) - 90 to 1000RPM
  • Range of Power Feed - (2) 0.20-0.10

POWER

  • 1.Main Motor (1.5 HP )  - 1400KW/RPM 1.55/2800 KW/RPM
  • 2.Arm Elevating Motor (0.5 HP) - A-23 V-Belt

WORKING TABLE

  • L x W x H  - 380 x 300 x 300

WORKING RANGE

  • 1.Drilling Radius Max./Min. - 895/440
  • 2.Max./Min.Dist.Column to Spindle - 850/275
  • 3. Max.Drill Head Drive - 450
  • 4.Max./Min. Base Plate to Spindle -930/230
  • 5.Diameter of Column -168

BASE PLATE

  • L x W x H -760 x 1250 x 150
  • Working  Surface -820 x 610
  • No. of T-Slot  -4

DIMENSION

  • Overall Height : 2000
  • Wooden Case(L x W x H) -1250 x 1550 x 2000
