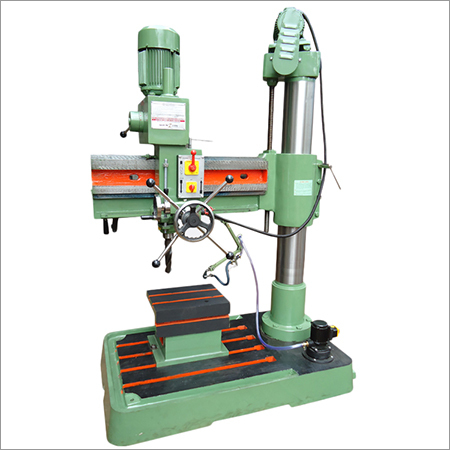

38 MM Fine Feed Radial Drill Machine

38 MM Fine Feed Radial Drill Machine
38 MM Fine Feed Radial Drill Machine
Product Code : MAAN 38/950
Brand Name : MAAN
Product Description

With the help of our professionals, we have been able to manufacture & supply 38 MM Fine Feed Radial Drill Machine. This machine provides 8 Speeds by accurate balanced pairs of cone pulleys, which runs on two ball bearings. This 38 MM Fine Feed Radial Drill Machine is featured with strongly ribbed and thick walled base plate having built-in coolant tank. Customers can avail this machine on numerous specifications as per their requirements.

Features:

  • Consume less power
  • Tapper Roller facility for better sliding of drill head on arm guide
  • Low noise operation
  • High output results

Technical Details:

Capacity:
Capacity 38mm
Drilling Capacity in Solid:
In Steel having 500 Mpa Tensile Strengh 38mm
In Cast Iron having 180BHN 40mm
Tapping Capacity:
Tapping Capacity 30mm
Drilling in Head:
Taper in Spindle – [Nose] MT – 4
 Spindle travels  250mm
 No. of Spindle Speeds/Range  8/50 – 1750 RPM
 No. of Auto Feeds  Hand Feed(Fine Feed)
Electrical:
Power Supply 415V, 3 PHASE, 50Hz
Drilling Head Two Speed Motor 2HP
Arm Elevating Motor 0.5HP
Working Range:
Max Drilling Radius 1050mm
Max Distance between Base Plate to Spindle [Spindle Retracted] 250/950mm
Max Drilling Head Traverse 640mm
Vertical Traverse of Arm [Auto] 750mm
Rotation of Arm [Both Side] 0-180 Deg.
Base Plate:
Working surface: L x W 820 X 660
Weight of machine with electrical & standard accessories(approx) Net/Cross 850/1300kg
 No. of T – Slots & Nominal size  4/16
 V-belt section of Arm Elevater Motor  A-25-A-24
Box Table Size: L x H x W:
Box Table Size 400 X 300 X 300
Wooden Box Packing Dimension
Wooden Box packing Dimension 1300 x 820 x 2000
