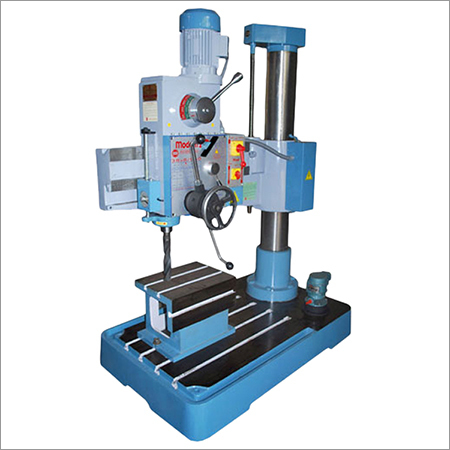

38 MM Auto Feed Radial Drill Machine

38 MM Auto Feed Radial Drill Machine
38 MM Auto Feed Radial Drill Machine
Product Code : 38 MM RADIAL DRILL
Product Description

Auto Power Feed Drilling Machine fortified with innovative feed control system, is an idyllic cost saving method for drilling a huge number of holes with widths up to 36mm and supreme depth up to 51mm. It's a condensed, stiff mag drill with ultra-light heaviness of 13.5 kg. It is taken into use for cutting holes through or into wood, metal, and other materials. This machine uses a drilling tool that possess cutting edges at points. These are also used for counterboring, countersinking, boring, tapping, spot facing, reaming, etc. These are installed with the capability to feed the cutting tool into the function automatically, at a predetermined depth of cut each revolution of the spindle, typically in the thousandths of an inch every revolution.

  • These machines are utilized in maintenance workshops for medium-duty functions, or work that utilizes big drills that need power feeds.
  • It is flawlessly appropriate for large production and second process drilling single or multiple holes following machining in CNC lathes and centres.
  • It enhances production with constancy and lessens almost 70% of the work-force cost.
  • Suitable for several functions like boring, tapping, etc.

Technical Details:

Capacity:
Capacity 38mm
Drilling Capacity in Solid:
In Steel having 500 Mpa Tensile Strength 38mm
In Cast Iron having 180BHN 40mm
Tapping Capacity:
Tapping Capacity 30mm
Drilling in Head:
Taper in Spindle - [Nose] MT - 4
Spindle travels  250mm
 No. of Spindle Speeds/Range  8/50 - 1750 RPM
 No. of Auto Feeds  Hand Feed (Fine Feed)
Electrical:
Power Supply 415V, 3 PHASE, 50Hz
Drilling Head Two Speed Motor 2HP
Arm Elevating Motor 0.5HP
Working Range:
Max Drilling Radius 1050mm
Max Distance between Base Plate to Spindle [Spindle Retracted] 250/950mm
Max Drilling Head Traverse 640mm
Vertical Traverse of Arm [Auto] 750mm
Rotation of Arm [Both Side] 0-180 Deg.
Base Plate:
Working surface: L x W 820 X 660
Weight of machine with electrical & standard accessories(approx) Net/Cross 850/1300kg
 No. of T - Slots & Nominal size  4/16
 V-belt section of Arm Elevator Motor  A-25-A-24
Box Table Size: L x H x W:
Box Table Size 400 X 300 X 300
Wooden Box Packing Dimension
Wooden Box packing Dimension 1300 x 820 x 2000
