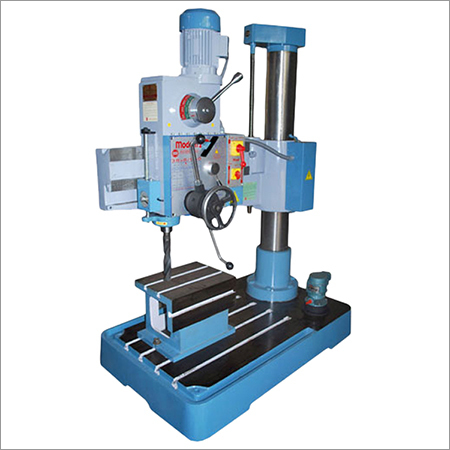

38 MM ALL GEARED RADIAL DRILL MACHINES

38 MM ALL GEARED RADIAL DRILL MACHINES
38 MM ALL GEARED RADIAL DRILL MACHINES
Product Code : 38 MM RADIAL DRILL
Product Description

Technical Details:

Capacity:
Capacity 38mm
Drilling Capacity in Solid:
In Steel having 600 Mpa Tensile Strengh 38mm
In Cast Iron having 180BHN 40mm
Tapping Capacity:
Metric Threads up to size [MM]
 Any Other Threads [Inch]  Fine Pitch
Boring in Steel:
Boring in Steel 80mm
Drilling in Head:
Taper in Spindle – [Nose] MT – 4
Spindle travels – [Auto/Manual] 200mm
Spindle Diameter at Front Bearing 55mm
RAM Diameter 78mm
 No. of Spindle Speeds/Range 8/60 – 1760 RPM
 No. of Auto Feeds 2/0.06 – 0.15
Working Range:
Max Drilling Radius 1035
Max Distance between Base Plate to Spindle [Spindle Retracted] 240/1000
Max Distance from Column Face to Spindle 450/950
Max Drilling Head Traverse 500mm
Column Sleeve Diameter 180mm
Vertical Traverse of Arm [Auto] 750mm
Rotation of Arm [Both Side] 1900mm
Height 0-180 Deg.
Rapid Feeds:
Travel of Rail – [Vertical] 750mm
Travel of Rail – [Vertical] 500 Manual
Electrical:
Power Supply 415V, 3 PHASE, 50Hz
Drilling Head Two Speed Motor 2HP, 1440/2800 RPM
 Arm Elevating Motor  0.5HP, 1440 RPM
 Coolant Pump  –
Base Plate:
Working surface: L x W 800 x 660
Overall size 1300 x 800 x 170 – R x S x Q
No. of T – Slots & Nominal size 01/04/16
Weight with Electricals & Standard Accessories-APPROX  Net/Cross 800Kg
Space Required by Machine: L x W x H:
Space Required 1300 X 2600 X 1900
Box Table Size: L x H x W:
Box Table Size 390 X 300 X 300
Colors:
Colors MAAN Blue – SPECIAL
