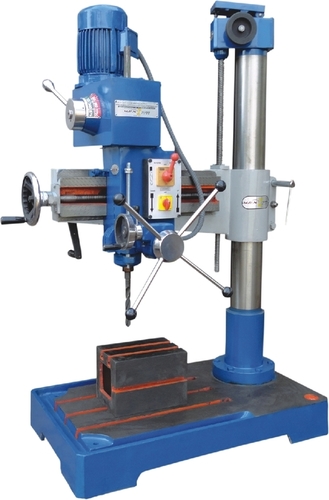

32 MM Semi All Geared Radial Drill Machine

32 MM Semi All Geared Radial Drill Machine
32 MM Semi All Geared Radial Drill Machine
Product Code : 25-32mm semi all geared fine feed radial drill mc
Product Description

Technical Details:

Type of Product Radial Drilling Machine
Diameter of RAM 78 mm
Spindle Travel 260 mm
Drilling In M.S. 32 mm
Column Dia. 150 mm
Spindle Taper M.T.4
Box Table Dimension 255x255x320 mm
Max / Min Distance Spindle Center to Column 800-350 mm
Elevating Motor 0.5 HP (1440 RPM)
Max / Min Distance Spindle Nose to Base 900-170 mm
Lifting Motor V-Belt A-22
Drill-Head Motor 2 HP (1440 RPM)
No of spindle speeds 8
Range of Spindle Speeds 80-2600 RPM
Net Weight 700 kg
Spindle feed by Hand star lever and worm
working area of base 790 x 690 mm
Overall height of machine 1950 mm
V. Belt B-47
size of base 1180x705x140 mm
Max Distance Spindle nose to Table 650 mm
