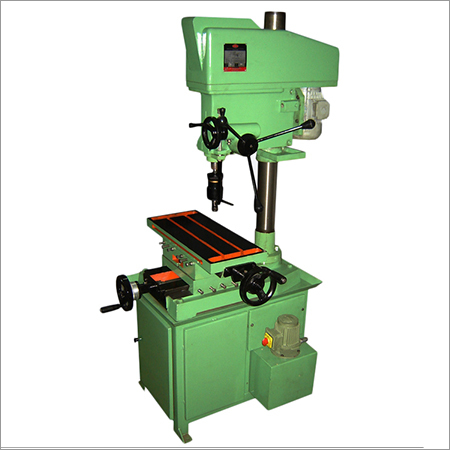

25mm Drilling Cum Milling Machine

25mm Drilling Cum Milling Machine
25mm Drilling Cum Milling Machine
Product Code : MAAN DCM-25/200
Brand Name : MODERN MACHINE
Product Description

We are well known industry in market as the foremost manufacturer and supplier of Gujarat, India, providing 25mm Drilling Cum Milling Machine. Our machine is electrical and other mechanical industry for milling as well as drilling purpose in several metallic or mechanical products up to a required depth. Highly acclaimed in distinct industries such as construction and automobile, the offered 25mm Drilling Cum Milling Machine is utilized for drilling holes.

Features

  • High operational fluency
  • Impeccable performance
  • Longer operating life
  • Fast speed

Technical Data :

Capacity :

Drilling capacity in M.S.

25mm

Tapping in M.S.

20mm

End milling in M.S.

20mm

Drilling Head :

Spindle hole Taper

MT-3

Max/Min. Dist. from Spindle nose to table

150

No. Of Spindle Speed/Range

8/80 –2600 RPM

Column Diameter

90

Auto Feed Range ( MM x rev )

Fine Feed

Spindle Center to Coloum:

Spindle Center to Coloum

206

Cross Travel:

Cross Travel

206

Column Diameter:

Column Diameter

90

Over All Dimension of Machine (L x W x H):

Over all dimension of Machine (L x W x H):

25 x 15 x 46

Power:

Electric Motors

1 HP

V-Belt

B-46

Weight (Without Stand):

Weight (Without Stand)

285 Kg.
