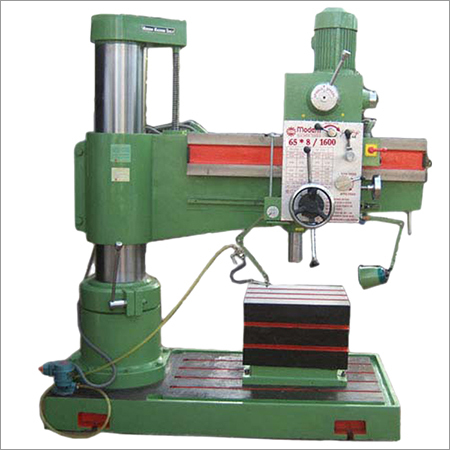

75 MM Radial Drill Machine

75 MM Radial Drill Machine
75 MM Radial Drill Machine
Product Code : 75 MM RADIAL DRILL
Product Description

Technical Details:

Capacity75mm
Drilling Capacity in Solid:
In Steel having 600 Mpa Tensile Strengh 75mm
In Cast Iron having 180BHN 85mm
Tapping Capacity:
Metric Threads up to size [MM] 48 X 3
Any Other Threads [Inch] 1 3/4 Fine Pitch
Boring in Steel:
Boring in Steel 160mm
Drilling in Head:
Taper in Spindle – [Nose] MT – 6
Spindle travels – [Auto/Manual] 325mm
No. of Spindle Speeds/Range 16/40 – 2000 RPM
No. of Auto Feeds 4/0.10 – 0.25
Working Range:
Max Drilling Radius 500/1800
Max Distance between Base Plate to Spindle [Spindle Retracted] 500/1400
Max Drilling Head Traverse 1350MM
Rotation of Arm [Both Side] 0-180 Deg.
Electrical:
Power Supply 415V, 3 PHASE, 50Hz
Drilling Head Two Speed Motor 7.5HP
Arm Elevating Motor 3HP
Base Plate:
Working surface: L x W 1680 x 1060
No. of T – Slots & Nominal size 4/22
Weight with Electrical & Standard Accessories-APPROX (Net/Cross) 5000/5500Kg
 Wooden Box Packing Dimension: L x W x H
 Wooden Box Packing Dimension 600 x 500 x 500
Box Table Size: L x H x W:
Box Table Size
Colors:
Colors MAAN GREEN – SPECIAL



MAAN TECHNOPLUS
